surfACE | PARTS
Boards

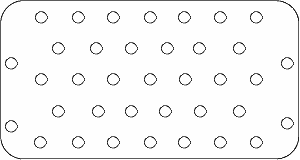

Main Board A (MBA)
width: 19 1/2" | depth: 10 1/2" | thickness: 3/8"

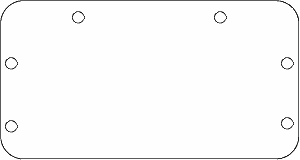

Main Board B (MBB)
width: 19 1/2" | depth: 10 1/2" | thickness: 3/8"

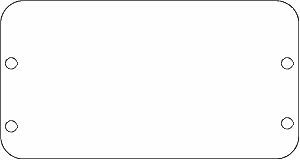

Main Board C (MBC)
width: 19 1/2" | depth: 10 1/2" | thickness: 3/8"

Sideboard (SBX)
width & depth: 9 1/4" | thickness: 1/4"
All Boards: Solid machined Acrylic–Clear or Translucent White.
Non standard Main Boards
Please contact us if you need a special size Main or Side Board, and we will quote you a price
Hardware

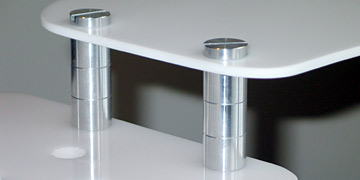

Rubber Top
Raiser
(RTR)

Main body
3/4" high



Universal
Raiser
(URR)

Main body
3/4" high



Slot Top
Connector (STC)


Flat Top
Connector
(FTC)


Tripod
Connector
1/4"
(TC1)


Tripod
Connector
3/8"
(TC2)
All hardware parts machined out of solid Aluminum. RTR topped with 1/4" rubber.
Mouse Pads


Mouse Pad (PM1)
round: 7 1/2"


Mouse Pad (PM2)
round: 7 1/2"
Separate parts are available for purchase here.


edgeBlur surfACE– patent pending • Design, specifications and prices are subject to change without notice
